The commercial hydroponic fodder system is a system that utilizes soilless cultivation techniques to rapidly produce fodder indoors or in enclosed environments, by precisely controlling environmental conditions such as light, temperature, humidity, etc. This system has the characteristics of high efficiency, environmental protection, and intelligence, which can significantly improve the efficiency and quality of fodder production in large scale cultivation.
| Product | Commercial Hydroponic Fodder System | ||||||
| Model | Type | Production | Daily Seed Need (kg) | Water Consump-tion (m³) | Electric Consump-tion (kwh/day) | Labour | The Proposed Facility Area (m) |
| FS-300 | A | 30 kg | 42-54 | 0.3m³ | 8 | 6X5X4 | |
| FS-500 | A | 500 kg | 70-91 | 0.5m³ | 8 | 1 or 2 people | 7.8X5X4 |
| FS-1000 | B | 1000 kg | 140-182 | 0.8m³ | 10 | 12X6X4 | |
| FS-1500 | B | 1500 kg | 210-273 | 1m³ | 15 | 16X6X4 | |
| FS-2000 | B | 2000 kg | 280-364 | 1.5m³ | 20 | 6X4X20 | |
| FS-3000 | B | 3000 kg | 420-546 | 2.2m³ | 25 | 6X4X30 | |
| FS-5000 | B | 5000 kg | 700-910 | 3.5m³ | 35 | 2~5 people | 6X4X50 |
| FS-6000 | B | 6000 kg | 840-1092 | 4m³ | 38 | 6X4X60 | |
| FS-10T | B | 10 tons | 1400-1820 | 6m³ | 55 | 12X4X50 | |
| FS-10T/50T | B | 10-50 TONS upon request | |||||
| Application: | Animal husbandry, Urban agriculture, Emergency feed, Research and education. | ||||||
Intelligent environmental control system: Using multi parameter sensors to monitor real-time environmental parameters such as temperature, humidity, and lighting, and dynamically adjusting them through artificial intelligence algorithms to ensure that the fodder is in the best growth state.

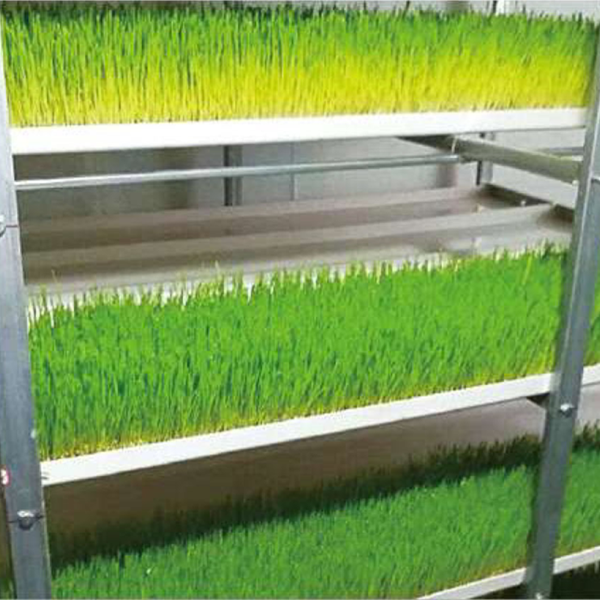

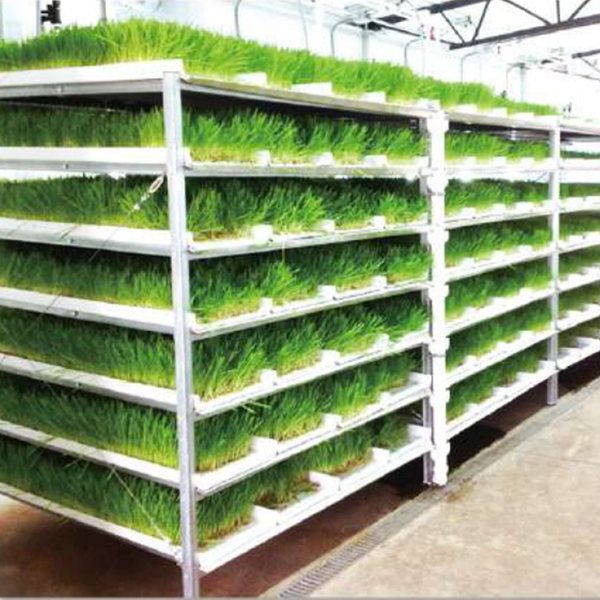

Vertical Cultivation System: Modular multi-layer vertical cultivation racks support customized arrangement with high space utilization efficiency.
LED spectral technology: Customized light enhancement based on the light requirements of different growth stages of fodder, improving photosynthetic efficiency and reducing energy consumption.
IoT management platform: Remote monitoring of devices, visualization of growth data, and fault warning through cloud platform mobile terminals.
Short growth cycle: The growth cycle of hydroponic grass is only 7 days, much shorter than traditional planting methods.
High yield: The yield per unit area is 7 to 10 times higher than traditional planting one.
Efficient resource utilization: saving over 90% of water, eliminating the need for fertilizers and pesticides, and reducing environmental pollution.
Strong environmental adaptability: not limited by seasons and climate, with stable supply throughout the year
Intelligent management: Through the Internet and big data analysis, remote monitoring and automated control can be achieved, reducing manual intervention
