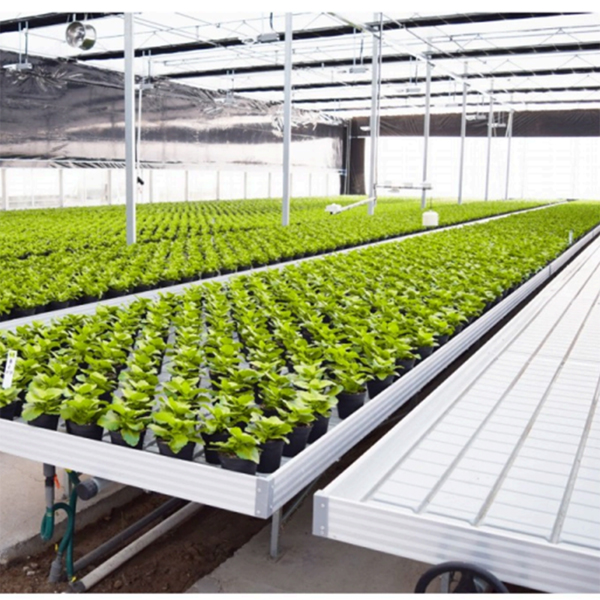

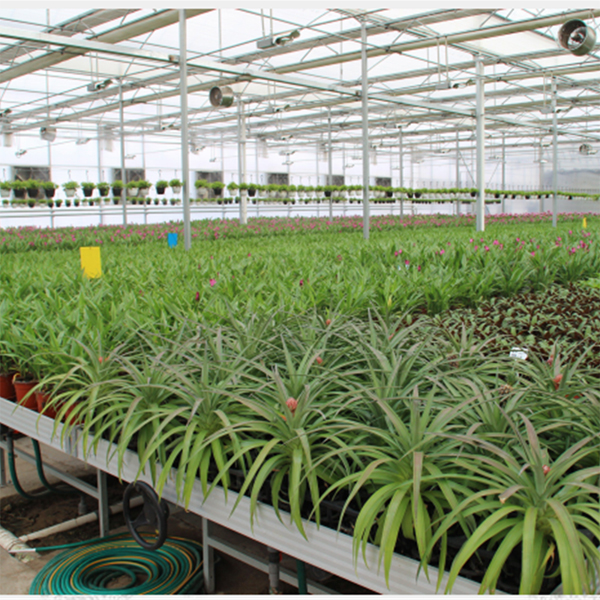

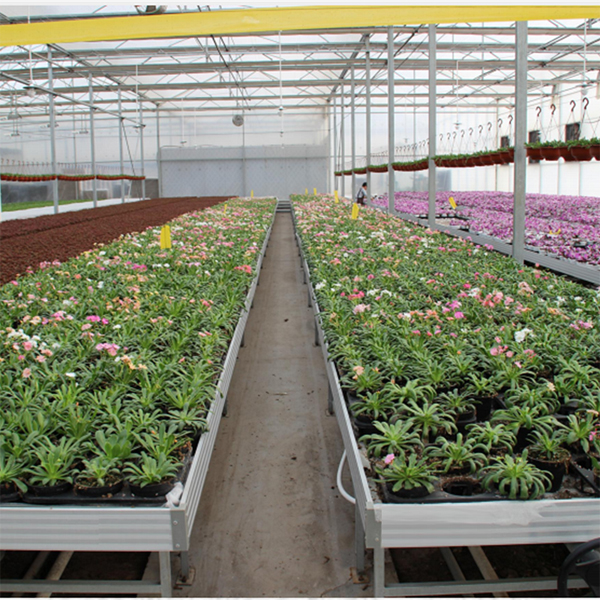

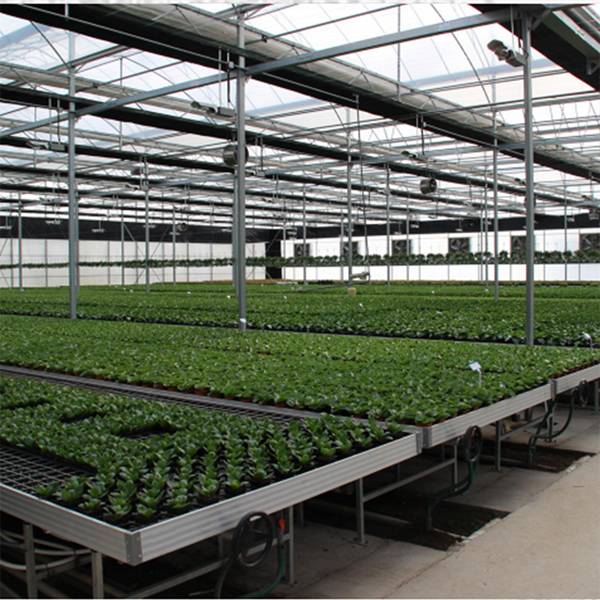

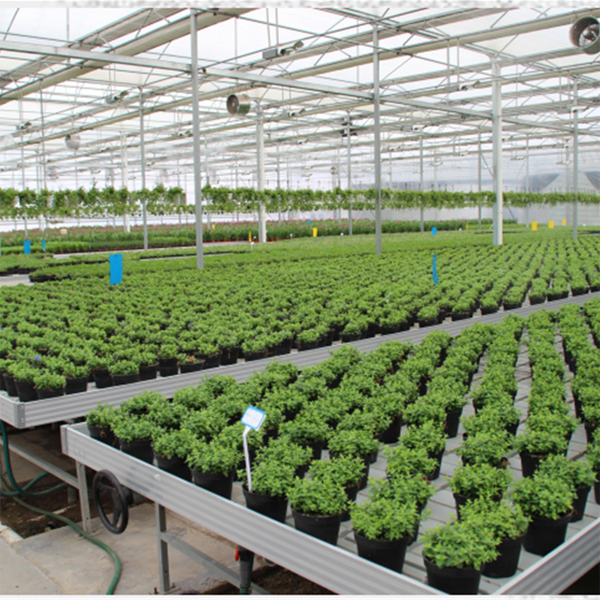

Ebb and flow table is a modern agricultural planting equipment mainly used for seedling cultivation, flower cultivation, and hydroponic cultivation of leafy vegetables. It is also known as the "bottom irrigation cultivation bed" or "flood seedbed".
Ebb and flow table simulate tidal phenomena by regularly submerging and emptying planting containers or flood table. Specifically, plant roots are periodically filled with nutrient solution, absorbing nutrients, and then emptying the nutrient solution to allow the roots to breathe fresh air and reduce diseases.
This system adopts the hydroponic method of rising and falling tides, by regularly flooding the tray with nutrient rich water, the crops are suspended in the tray, and the roots are soaked in beneficial nutrients.
Ebb and Flow table hydroponic system consist of flood trays, table brackets in hot galvanized steel pipe and a wheel making the flood table flexible.
This moving Ebb and Flow table can be irrigated with watering or fertilizing in one system, the flood trays are filled with water or nutrient solution, and it is retained for a certain time, so that the plants rely on capillary action to absorb water through the drainage hole at the bottom of the pot. The irrigation water is then discharged from the flood table, collected and reused, or directly into sewer pipes.
| product: | ebb and flow table | movable ebb and flow table | automatic ebb and flow table | multilayer ebb and flow table |
| specification: | - table size same as tray size, and length can be no limited from the splicing. (see flood tray size) - table height 700mm or customized - aluminum frame height 130mm - trays depth 75mm - moving space 30cm | size of movable ebb and flow table: 1320*720*650mm (2’X4’) 1320*1320*650mm (4’X4’) 1930*1015*650mm (3’X6’) 1930*1320*650mm (4’X6’) 2540*1320*650mm (4’X8’) and sizes of flood trays for movable Ebb and Flow table: 1320*660*190MM (2’X4’) 1320*1320*175MM (4’X4’) 1930*1015*190MM (3’X6’) 1930*1320*190MM(4’X6’) 2540*1320*190MM(4’X8’) | Single table size(WXL): 4’*8’, 4’*10’, 5’*10’, 5’*12’, etc. | The length can be customized, width as the flood tray. |
| other parameters | - load capacity 80kgs/sqm | Material: Galvanized steel Wheels: 4*Fixed caster, 2*universal wheel Weight: 17.7/17/22.5/24/30kg Pipe: 4pcs Maximum load: 300KG | UV-resistant: Yes Zinc coating: 500g/mm Load capacity: 450-500N/mm (45-50kg/mm) Lifespan: 20years. | |
| material | - flood tray: ABS food grad - brackets: hot-dip galvanized - frames: aluminum alloy | - flood tray: ABS food grade, - table brackets: galvanized steel | flood trays: ABS plasti table frame: 6063-T5 aluminum profile, corner bracket: ABS track transport lines: marine grade aluminum profile middle cross beam: hot-dip galvanized steel tube wheel beam: hot-dip galvanized steel tube supporting stand: hot-dip galvanized steel tube. | Materials of Ebb and flow trays: ABS plastic Frame:6063-T5 aluminum profile Corner bracket: ABS Track transport line: marine grade aluminum profile. Middle cross beam: hot-dip galvanized steel tube Wheel beam: hot-dip galvanized steel tube Supporting stand: hot-dip galvanized steel tube. |
| component: | The ebb and flow table is mainly composed of flood tray, brackets, rollers, crossbeams, frames, etc. The flood tray is made of food grade ABS material, with a depth of about 5 cm and a matching upper and lower water structure. | The movable ebb and flow table is mainly composed of flood trays, brackets, frames, 4 feet wheels. | The automatic ebb and flow table is mainly composed of flood trays, table frame, brackets, track transport lines, middle cross beam, wheel beam, supporting stand. | The multi-layer ebb and flow table is mainly composed of flood trays, and multi-layer brackets. |
| features and advantages: | The ebb and flow system has the advantages of low cost and high efficiency on hydroponic cultivation system. It is widely used in agricultural industry and greenhouse cultivation. * Improve growth rate and yield. * Producing crops with higher nutritional value and rich flavor. * Reliable growth environment. * Low start-up cost: Compared to other high-tech hydroponic systems, ebb and flow table system has a lower cost because they do not require any high-tech, expensive components | The movable ebb and flow table is equipped with wheels at the base of the flood table. Its working principle is the same as that of a regular ebb and flow table, and its most significant feature is that it can be easily moved and used. | * water saving and efficient * promoting plant growth * Reduce the occurrence of plant disease * Convenient management * Wide applicability * Improving space unilization * Reduce management costs | Besides of the features and advantages of standard ebb and flow table, this multi-layer design increases the utilization of vertical space, making it particularly suitable for large-scale cultivation of high value-crops. This design significantly improves agricultural production efficiency and yield. |
| application: | Ebb and flow table is ideal for growing seedlings, vegetables, flowers, herbs and germinating. They are widely used in commercial greenhouses, seedling nursery bases, hydroponics laboratories, research glasshouses, retail and institutional uses. | the movable ebb and flow table can be applied in a wider range of scenarios, including greenhouse use and household use, with various sizes to choose from. | The automatic ebb and flow table system is suitable for planting various seedlings, especially for seedlings that need to maintain a certain humidity and temperature. For example, rice, wheat, corn, vegetables, and fruits. | The multi-layer ebb and flow table is well used in large-scale commercial greenhouse cultivation. |

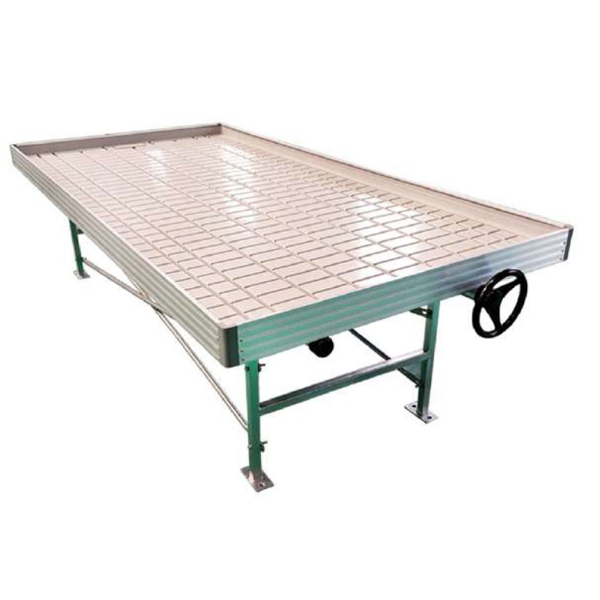

* The table with hot-dip galvanized brackets, height is adjustable accurately by screw nuts.
* The aluminum table frame completely wrap the flood table, the side has a stronger pattern, and the double-layer aluminum frame is easy to support the trolley.
* The flood trays have various sizes for option, and flood trays also have different grades for choice.

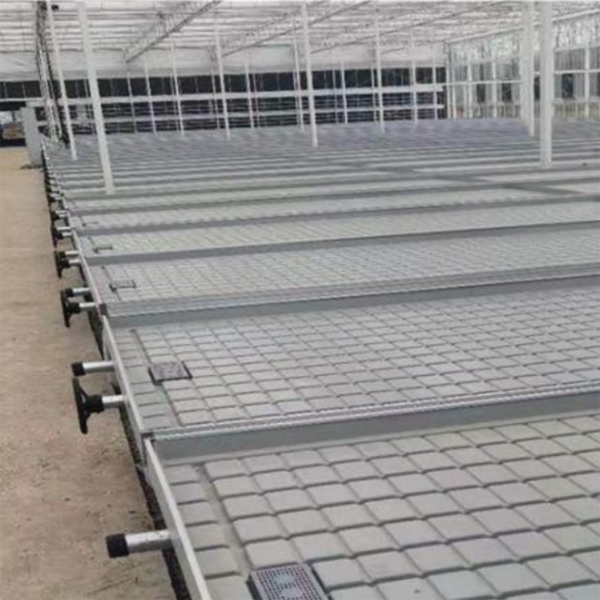

* The flood tray can be spliced each other with splicing pieces, the length is not limited, and also there are independent panels for choice.

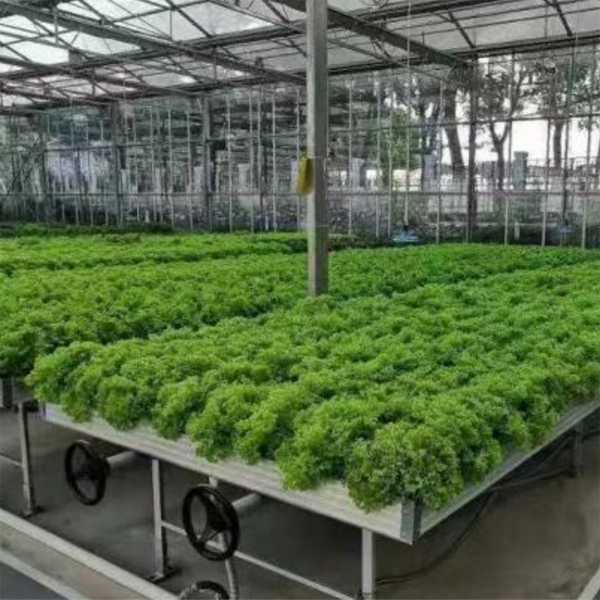

The movable ebb and flow table is equipped with wheels at the base of the flood table. Its working principle is the same as that of a regular ebb and flow table, and its most significant feature is that it can be easily moved and used. So, the movable ebb and flow table can be applied in a wider range of scenarios, including greenhouse use and household use, with various sizes to choose from.
Automatic ebb and flow table is the most advanced and efficient greenhouse cultivation system.
It is a specially designed ebb and flow table equipped with shuttle vehicles and track transport lines. Shuttle vehicles ride underneath the rolling benches and takes the round pipes as rails. The computer control system can move the individual rolling bench to the track transport line via the shuttle bench. The track transport lines are designed to ensure that the rolling bench moves between rows and connects the growing area to the work area, this makes the automatic cultivation system.
It maximizes the utilization space and it is especially suitable for large scale production.
It greatly reduces the concurrence of gangrene and buckling leaves to improve the survival and growth rate of seedlings.
It can easily control relative humidity, lighting and carbon dioxide level in the growing environment.
It greatly reduces the labor costs and provides a high precision and efficient operation to maximize the production efficiency.
It greatly saves water and nutrient solution and makes the fertilization more economic and efficient.
Compatible with many computer control systems and various specifications are available to meet different demands.
Water saving and efficient: The flood table adopts a completely closed system circulation, which can achieve a water and fertilizer utilization rate of over 90%, significantly reducing the waste of water resources.
Promoting plant growth: By simulating flood effects, periodically supplying and draining water, promoting the development of plant roots, enhancing plant water absorption capacity and nutrient absorption efficiency, thereby improving crop growth rate and production.
Save water resources: Control water supply by simulating flood cycles, effectively utilize water resources, and reduce water waste.
Reduce the occurrence of plant diseases: The automatic adjustment system can control the humidity and temperature inside the flood table, reducing the occurrence of plant diseases.
Convenient management: Automated systems reduce the need for manual operations and improve production efficiency.
Wide applicability: It can be used not only for the cultivation of vegetables and flowers, but also for the cultivation of aquatic crops such as rice.
Improving space utilization: The vertical design of flood table enables the utilization of vertical space and enhances the output efficiency.
Reduce management costs: Even with manual operation, one person can complete large-scale irrigation tasks in a short period of time, reducing management costs
Multilayer ebb and flow table is a kind of greenhouse bench especially suitable for vertical growing, it also consists of ABS flood trays and multilayer brackets. The two and above layers improve the cultivation space and production yield. It can be designed to be both mobile and stationary type and all sizes are customized to perfectly meet your cultivation demands.
It optimizes your growing space in vertical direction and creates more growing area.
It can simply double or triple the production by increasing the number of bench trays in limited space.
Plants are always watered very evenly as well as being fully fertilized.
It greatly reduces your labor, water and fertilizer costs and improve your profits.
It can easily control relative humidity, lighting and carbon dioxide level in the growing environment.
Most plants grown on ebb &flow benches tend to finish 1 to 2 weeks earlier than other irrigation systems.
Efficient water and fertilizer conservation: The ebb and flow table adopts a closed cycle system, with a water and fertilizer utilization rate of over 95%, a water conservation rate of up to 33%, and a nitrogen utilization rate increase of 30% to 35%. This design reduces water and fertilizer waste and improves resource utilization efficiency
Promoting plant growth: By simulating natural tidal phenomena, ebb and flow table allow plant roots to intermittently absorb nutrients and come into contact with air, reducing the risk of root decay. This design promotes healthy root growth, enhances photosynthetic efficiency, and shortens the growth cycle.
Convenient management: The ebb and flow table support automated control, reducing human dependence. Large greenhouse irrigation only requires one person to operate, reducing management costs.
In addition, the mobility design of ebb and flow table makes their layout in the greenhouse more flexible, improving the utilization rate of greenhouse area.
Improving yield: The multi-layered vertical layout increases the utilization of vertical space, making it particularly suitable for large-scale cultivation of high value-crops. This design significantly improves agricultural production efficiency and yield.
Accurate environmental control: By precisely regulating the environment (such as humidity and temperature), the ebb and flow table can improve photosynthetic efficiency, reduce the occurrence of pests and diseases, and further promote healthy plant growth.
